Product features:

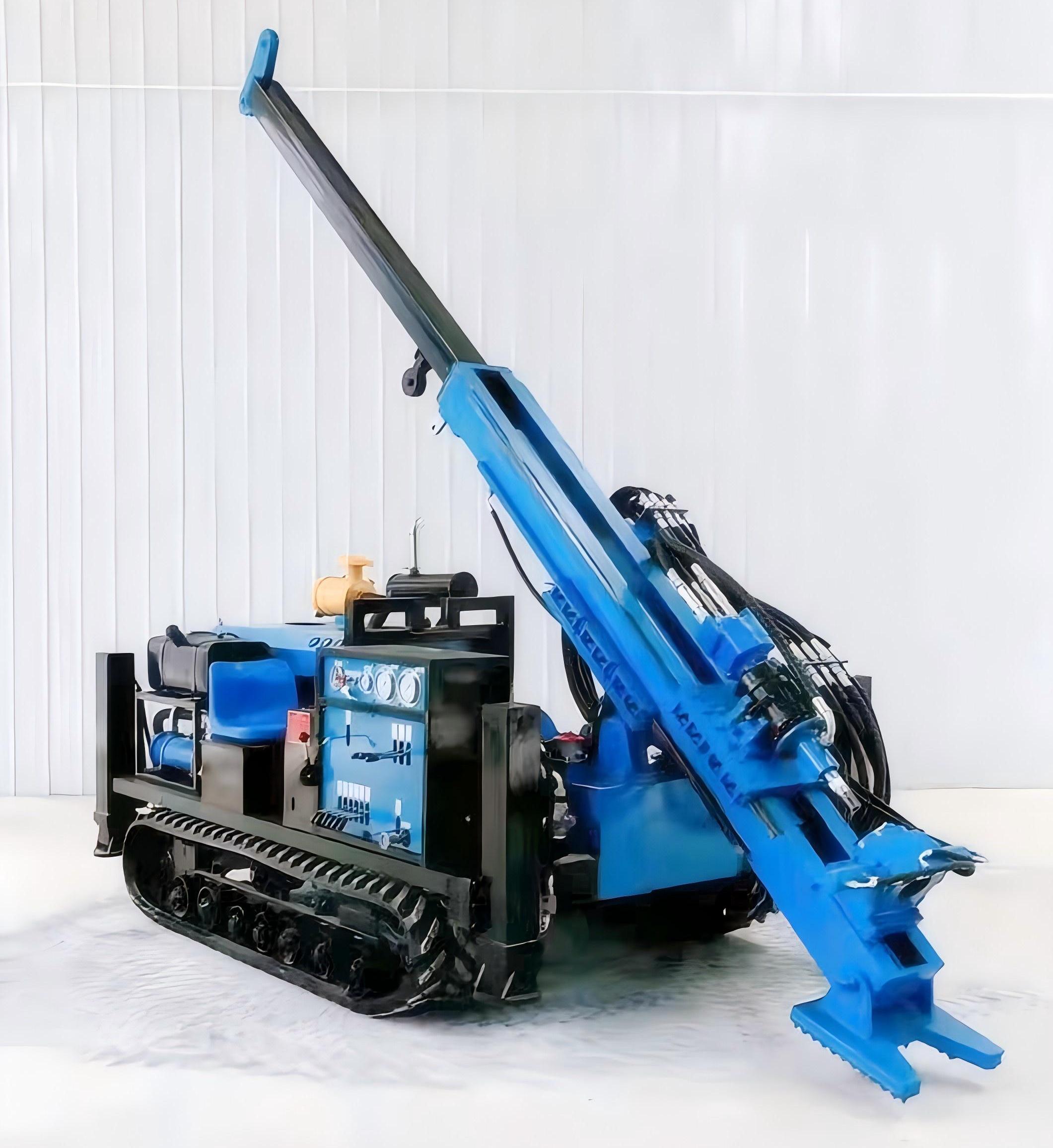

Efficient, lightweight, mast touching tracked fully hydraulic drilling rig;
Can meet the drilling requirements of 45°-90°inclined holes;
Geological drilling, rope core retrieval, exploration, engineering survey;
Thin-walled diamond rope core drilling technology, thin-walled drill bit;
The core diameter is large, the torque resistance is small, and the core extraction efficiency is high.
| Drilling Capacity | |
| Caliber | HTW-NTW-BTW |
| depth | 200-400-500(M) |
| Hydraulic system | |
| Rated pressure | 20(MPA) |
| Rated flow rate | 160(L/min) |
| Heat dissipation method | forced air cooling |
| Engine | |
| Brand | Yuchai |
| Type | Turbo |
| Rated speed | 2400(RPM) |
| Rated power | 70(kw) |
| Drilling system | |
| Torque | 350-700(N.M) |
| Speed | 1300(RPM) |
| Tower type | Integrated ground contact type |
| Go ahead with the process | 1900(MM) |
| Drilling tower angle | 45-90。 |
| Boosting power | 14(T) |
| Give in strength | 7(T) |
| Transmission type | Direct connection box |
| Rope hoist | |
| Boosting power | 600(KG) |
| Speed | 100-300(RPM) |
| Diameter of steel wire rope | 6(MM) |
| Rope capacity | 600(M) |
| Walking system | |
| Operation type | Manual+Remote control |
| Walking speed | 3.5(KM/H) |
| Climbing angle | 40° |
| Mud pump | |
| Model | BW-100 |
| Flow | 0-100(L/MIN) |
| Pressuer | 0-7(MPA) |
| Size and weight | |
| Transport size | 4200×2050×2300(MM) |
| Whole machine weight | 4.3(T) |
Q1: Are you a manufacturer, trading company or a third party?
A1: We are a manufacturer. Our factory is located in Hebei Province near the capital Beijing, 100km away from Tianjin port. We also have our own trading company.
Q2: Wonder if you accept small orders?
A2: Do not worry. Feel free to contact us. In order to get more orders and give our clients more convenience, we accept small orders.
Q3: Can you send products to my country?
A3: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q4: Can you do OEM for me?
A4: We accept all OEM orders, just contact us and give me your design. We will offer you a reasonable price and make samples for you ASAP.
Q5: What's your payment terms?
A5: By T/T, L/C AT SIGHT, 30% deposit in advance, balance 70% before shipment.
Q6: How can I place the order?
A6: First sign the PI, pay deposit, then we will arrange the production. After finished production you need to pay the balance. Finally we will ship the goods.
Q7: When can I get the quotation?
A7: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation, please call us or tell us in your mail, so that we could regard your inquiry priority.
Q8: Is your price competitive?
A8: Only good quality product we supply. Surely we will give you the best factory price based on superior product and service.
