XYT-1A Trailer type core drilling rig

Short Description:

XYT-1A Trailer type core drilling rig adopts four hydraulic jacks and hydraulically controlled self-supporting tower. It is installed on the trailer for easy walking and operation.

XYT-1A Trailer type core drilling rig is mainly used for core drilling, soil investigation, small water wells and diamond bit drilling technology.


  • Drilling depth: 100/180m
  • Drilling diameter: 150mm
  • Rod diameter: 43mm
  • Maximum output torque: 500N.m
  • Rig weight : 3500kg
  • Overall dimension: 4500x2200x2200mm
  • Product Detail

    Product Tags

    Product Introduction

    XYT-1A Trailer type core drilling rig adopts four hydraulic jacks and hydraulically controlled self-supporting tower. It is installed on the trailer for easy walking and operation.

    XYT-1A Trailer type core drilling rig is mainly used for core drilling, soil investigation, small water wells and diamond bit drilling technology.

    Fundamental parameters



    Unit

    XYT-1A

    Drilling depth

    m

    100,180

    Drilling diameter

    mm

    150

    Rod diameter

    mm

    42,43

    Drilling angle

    °

    90-75

    Overall dimension

    mm

    4500x2200x2200

    Rig weight

    kg

    3500

    Skid



     Rotation unit

    Spindle speed

    Co-rotation

    r/min

    /

    Reverse rotation

    r/min

    /

    Spindle stroke

    mm

    450

    Spindle pulling force

    KN

    25

    Spindle feeding force

    KN

    15

    Maximum output torque

    N.m

    500

    Hoist

    Lifting speed

    m/s

    0.31,0.66,1.05

    Lifting capacity

    KN

    11

    Cable diameter

    mm

    9.3

    Drum diameter

    mm

    140

    Brake diameter

    mm

    252

    Brake band width

    mm

    50

    Frame moving device

    Frame moving stroke

    mm

    410

    Distance away from hole

    mm

    250

    Hydraulic oil pump

    Type



    YBC-12/80

    Rated flow

    L/min

    12

    Rated pressure

    Mpa

    8

    Rated rotation speed

    r/min

    1500

     Power unit

    Diesel engine

    Type



    S1100

    Rated power

    KW

    12.1

    Rated speed

     r/min

    2200

    Main features

    1. Compact structure, light weight, large main shaft diameter, long stroke and good rigidity. Hexagonal Kelly ensures torque transmission.

    2. The drilling rig tower and main engine are installed on the wheel chassis with four hydraulic legs. The drilling tower has the functions of lifting, landing and folding, and the whole machine is easy to move.

    3. The hydraulic mast is composed of the main mast and the mast extension, which greatly improves the work efficiency and is very convenient for transportation and operation.

    4. Compared with the ordinary core drill, the trailer core drill reduces the heavy derrick and saves the cost.

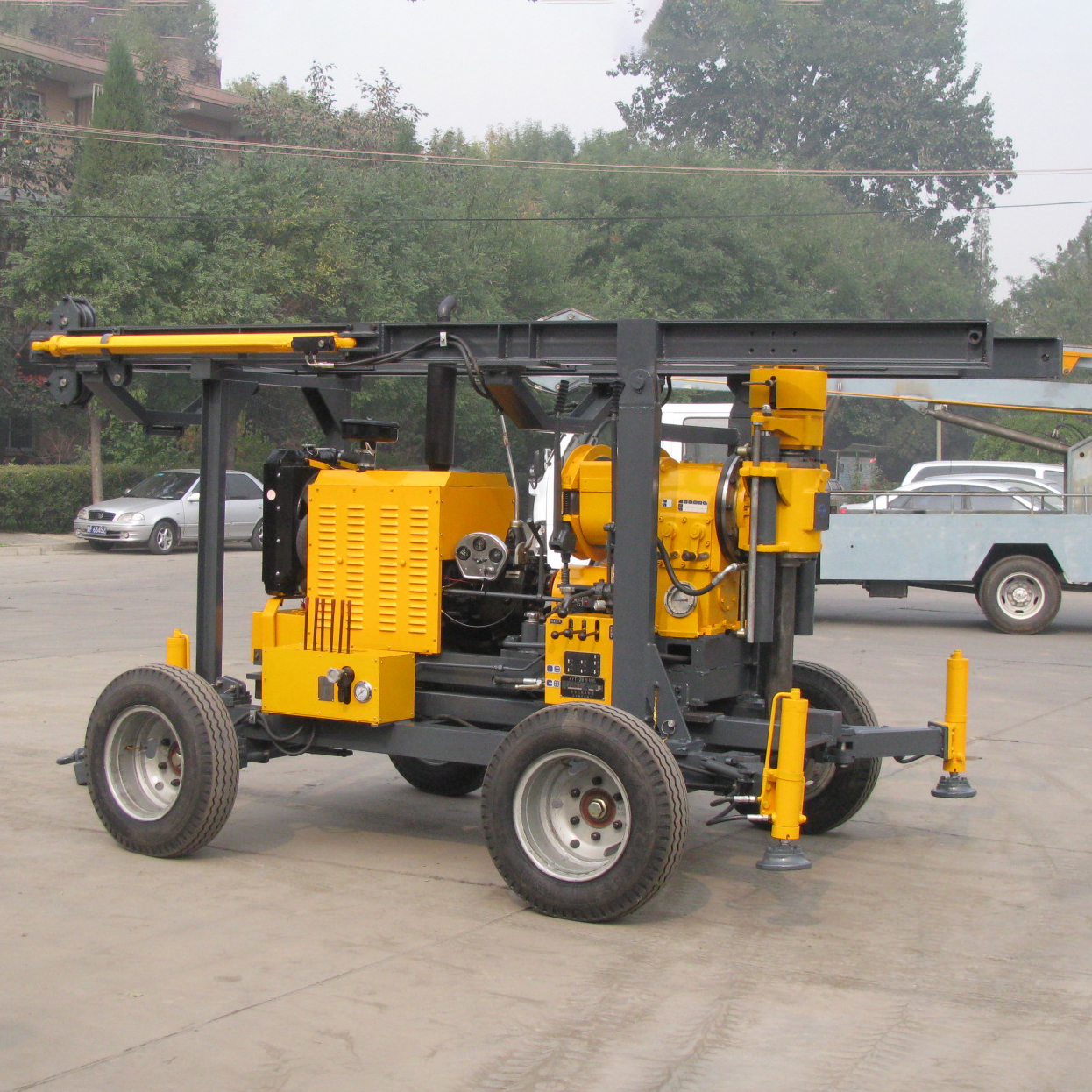

    2.Core Trailer Drilling Rig

    5. The XYT-1A trailer type core drilling rig has high optimal speed and can meet various requirements for small-diameter diamond drilling, large-diameter cemented carbide drilling and various engineering holes drilling.

    6. During feeding, the hydraulic system can adjust the feed speed and pressure to meet the drilling requirements of different formations.

    7. Provide bottom hole pressure gauge to monitor drilling pressure.

    8. XYT-1A Trailer type core drilling rig adopts automobile transmission and clutch, which is convenient for maintenance.

    9. Centralized control panel, easy to operate.

    10. The octagonal main shaft is more suitable for high torque transmission.
