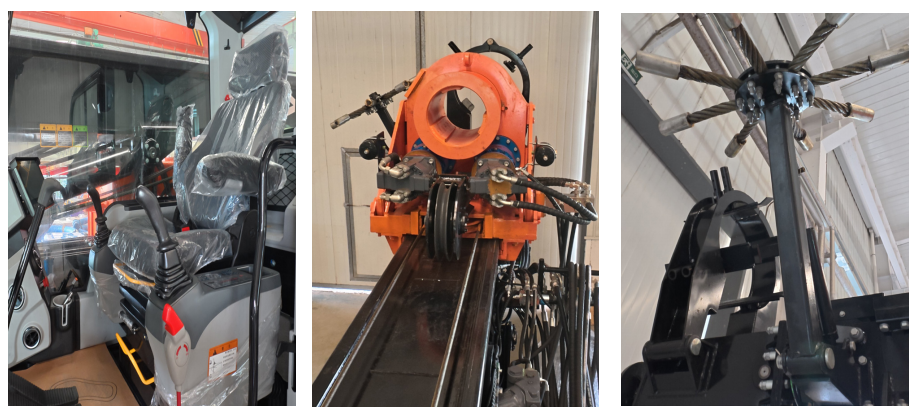

Features and advantages ofTR60:
1. The maximum speed can reach to 50r/min. lt completely solves the problem of soil rejection difficulty for small diameter pile hole construction.
2. The main and vice winch are all located in the mast which are easy to observe the direction of the rope.
It improves the mast stability and construction safety.
3. Cummins engine is chosen to meet the state lll emission requirements with economic efficient, environmentally friendly and stable characteristics.
4. The hydraulic system adopts the international advanced concept, specially designed for the rotary drilling, system. Main pump, power head motor, main valve, auxiliary valve, walking system, rotary system and the pilot handle are all import brand. The auxiliary system adopts the load-sensitive system to realize the on-demand distribution of the flow. Rexroth motor and balance valve are chosen for the main winch.5. lt is no need to disassemble the drill pipe before transporting. The whole machine can be transported together.
6. All the key parts of the electric control system (such as display, controller, and the inclination sensor)adopt imported components of international famous brands, and use air connectors to make special products for domestic projects.
| TR60 Rotary drilling rig | ||
| Main parameter | Units | Parameters |
| Chasis | ||
| Engine Model | WeichaiWP4.1 Or Cummins | |
| Rated Power/Rotary Speed | kW/rpm | 74/2200 |
| Track width(margin) | mm | 2500 |
| Track shoe width | mm | 500 |
| Kelly Drilling hole | ||
| Max.Drilling Diameter | mm | 1000 |
| The max.drilling depth | m | 21 |
| CFA Drilling hole | ||
| Max.Drilling Diameter | mm | 600 |
| The max.drilling depth | m | 12 |
| Rotary Drive | ||
| Max.output torque | kN•m | 60 |
| Rotary speed | rpm | 0-55 |
| Max.pull-down piston push | kN | 80 |
| Max.pull-down piston pull | kN | 80 |
| Max.pull-down piston strlke | mm | 2000 |
| Main winch | ||
| Max.pulling force | kN | 85 |
| Max.pulling speed | m/min | 50 |
| Wire Rope Diameter | mm | φ20 |
| Auxiliary winch | ||
| Max.pulling force | kN | 50 |
| Max.pulling speed | m/min | 30 |
| Wire Rope Diameter | mm | φ 16 |
| Mast Rake | ||
| Forwards backwards | ° | 5 |
| Side backwards | ° | ±4 |
| Hydraulic system | ||
| Max.working pressure of main pump | MPa | 30 |
| Main machine | ||
| Total working weight | t | 17.5 |
| Transporting state size | mm | 9020x2500x3220 |
| Working state size | mm | 5860x2500x10700 |
| Recommended Kelly Bar | ||
| Friction kelly bar configuration | MZ273-4-6 | |
| Interlocking kelly bar configuration | JS273-4-6 | |
| The parameters will change as the technology improves, and everything is subject to the final product. | ||
Q1: Are you a manufacturer, trading company or a third party?
A1: We are a manufacturer. Our factory is located in Hebei Province near the capital Beijing, 100km away from Tianjin port. We also have our own trading company.
Q2: Wonder if you accept small orders?
A2: Do not worry. Feel free to contact us. In order to get more orders and give our clients more convenience, we accept small orders.
Q3: Can you send products to my country?
A3: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q4: Can you do OEM for me?
A4: We accept all OEM orders, just contact us and give me your design. We will offer you a reasonable price and make samples for you ASAP.
Q5: What's your payment terms?
A5: By T/T, L/C AT SIGHT, 30% deposit in advance, balance 70% before shipment.
Q6: How can I place the order?
A6: First sign the PI, pay deposit, then we will arrange the production. After finished production you need to pay the balance. Finally we will ship the goods.
Q7: When can I get the quotation?
A7: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation, please call us or tell us in your mail, so that we could regard your inquiry priority.
Q8: Is your price competitive?
A8: Only good quality product we supply. Surely we will give you the best factory price based on superior product and service.
