Back cycle series multi-function drilling rig is a new type, high efficiency, environmental protection, multi-function track drilling rig, it adopts the latest foreign RC drilling technology, rock dust can be effectively collected through the dust collector to avoid environmental pollution. It can also be collected by cyclone separator, which can be used for sampling and analysis of geological exploration department. It is the preferred equipment for geological exploration and drilling holes and other deep holes.

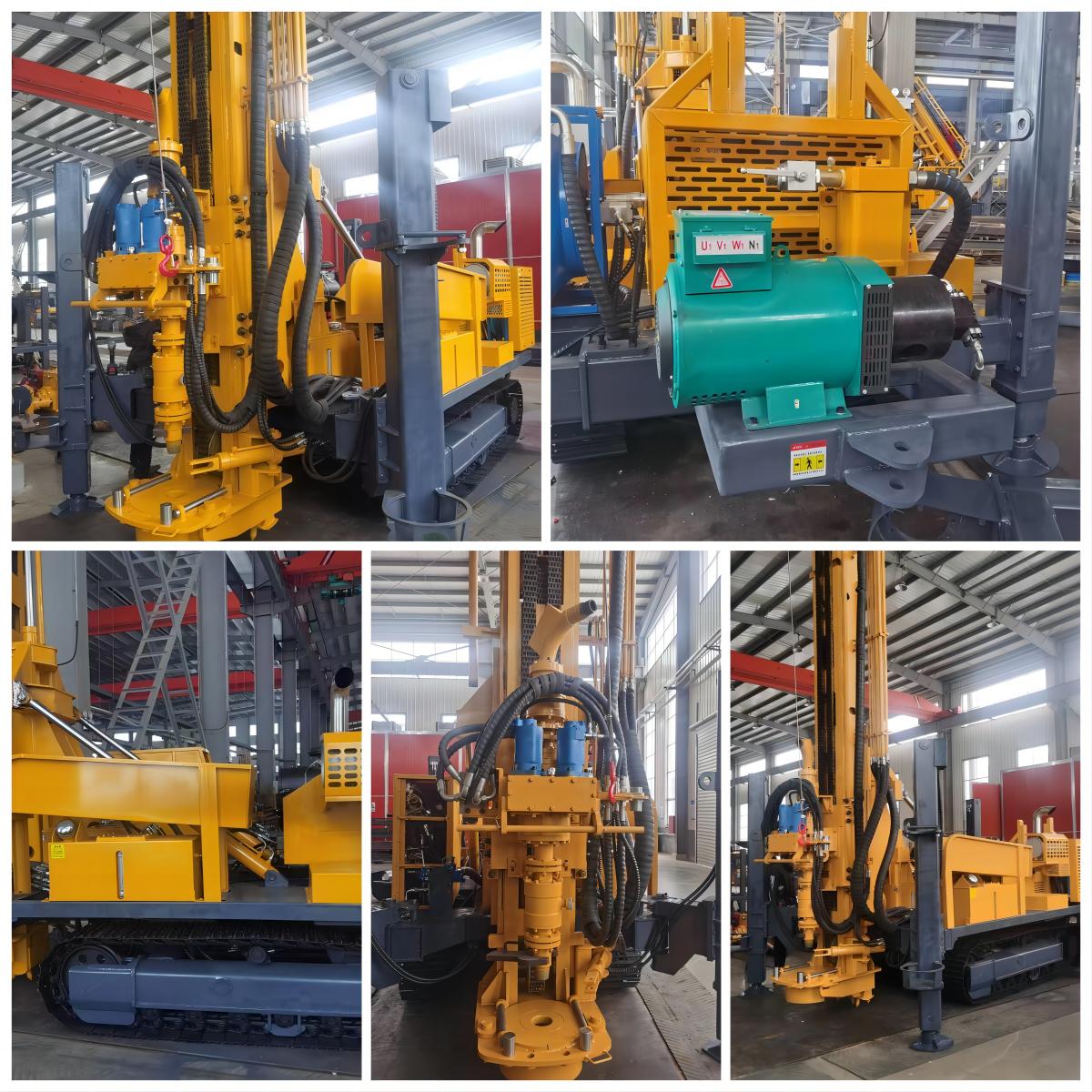

The drill can use compressed air reverse circulation submersible hole drilling in a variety of strata. The drilling rig drilling frame lifting, drilling frame compensation, drilling rod connection and unloading, rotation and feeding, legs, rolling, walking and other actions are all realized by the hydraulic system, greatly reduce the labor intensity, improve the construction efficiency and engineering quality,
The combination of drill rod elevator and hydraulic wrench makes the drill rod safe and convenient, quickly reduce labor intensity and improve operation efficiency.
Design a unique drill centering, supplemented by the level instrument, to ensure the drilling hole accuracy centering to open and close freely, easy to use, combined splint variable inner diameter and drill absolute match;
Choose the latest patent product an air per-filter, can filter out more than 90% of the dust in the intake, and automatically exhaust dust, without cleaning, effectively reduce engine wear, prolong the service life: improve work efficiency, so that it is really suitable for a variety of bad working conditions
The special oil mist of compressor system can improve the service life of impactor
Roller slide, wear resistance, long life.
Advantages of the exploration and drilling rig series
1 The power system is a diesel engine-driven hydraulic system

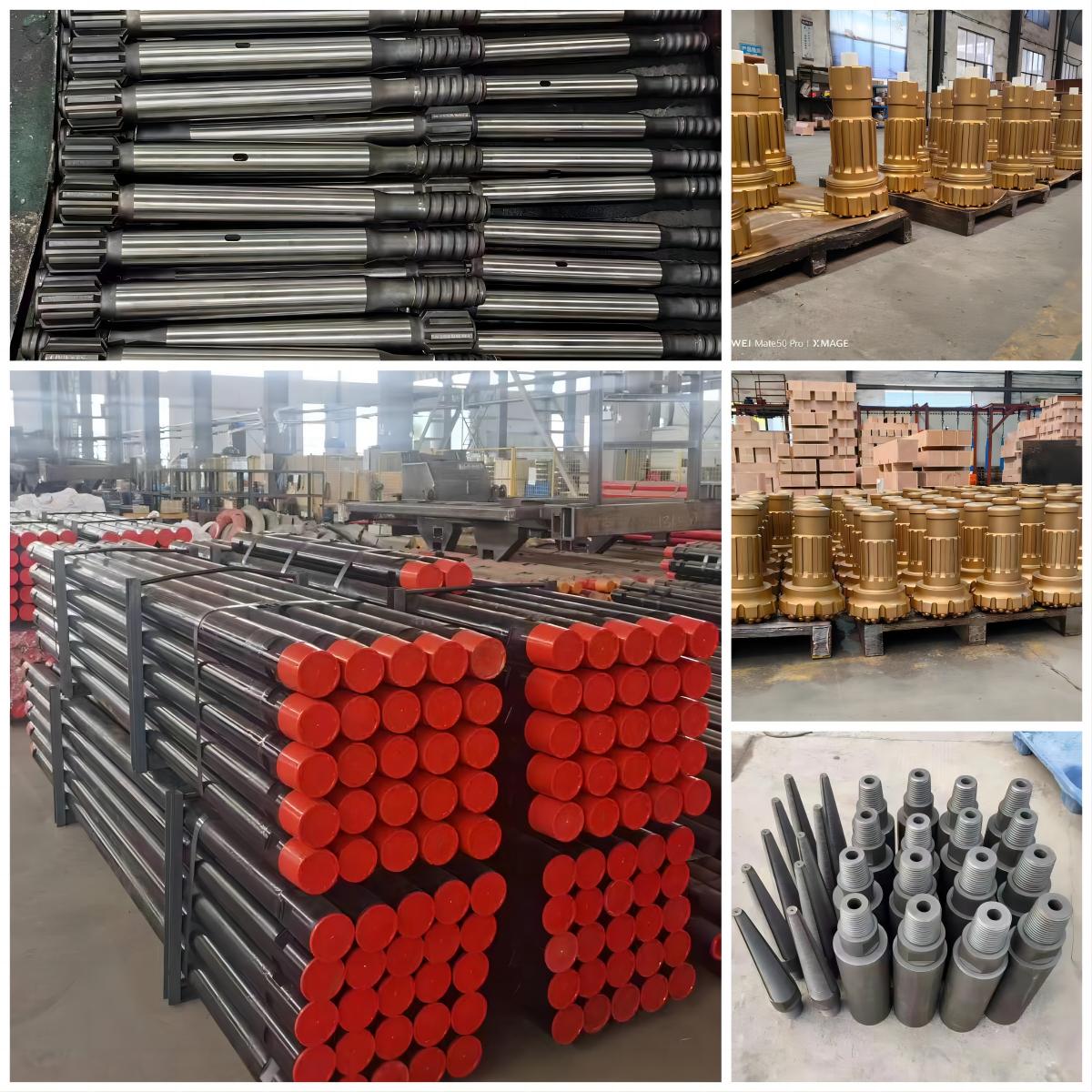

2 high performance reverse cycle impactor submersible hole operation, by the air compressor for air supply and slag discharge according to the size of the working hole can be matched with a variety of impactor, drill head.
3 With a standard modular design, the rig module can be optionally moved on the crawler chassis or truck.
4 The rig rotation adopts American-owned motor, driven at two points, with small model and large torque rotation speed can be adjusted according to different working conditions 5, effectively improving the footage efficiency of impactor
6 The cylinder plate chain structure is adopted for drilling and lifting, which is safe and reliable. The drilling shaft pressure and drilling speed can also be adjusted according to different working conditions to effectively improve the footage efficiency of the impactor
7 The hydraulic system is equipped with an independent hydraulic oil radiator to ensure the continuous operation of the drilling rig under outdoor high temperature and climate conditions.
The lifting hoist can flexibly lift the drilling tools or auxiliary tools of less than 1.5 tons
8 Multi-functional hydraulic jack, leveling the fuselage when the drill is working, and loading and unloading during transit transportation, without lifting.
9 During the rig operation, the drilling frame can improve the rigidity of the drilling frame by compensating the oil cylinder and ensure the working stability of the rig
The compensation skateboard protects the drill pipe thread and improves the service life of the drill pipe;
I: Technical parameters
|
Host model: SRC 600 |
|||
|
Diesel engine: Dongfeng Cummins 132KW |
|||
| Adapt to rock species | f=6-20 | speed for best rate of climb | 29m/min |
| borehole diameter | 105～450mm | Fast forward speed | 28m/min |
| Maximum drilling depth | Down 600m | Rotary torque | 12000/6000N*m |
| working air pressure | 1.6～6MPa | Rotation speed | 0～186r/min |
| gas consumption | 16～75m3/min | Intake efficiency | 10～35m/h |
| Power head trip | 4000mm | speed of travel | 3Km/h |
| run of steel | 3000mm | climbing capacity | 21° |
| Drill diameter | ￠89mm/￠102mm | Drill weight | 12t |
| Axial pressure | 7t | outline dimension | 7000×2100×2900mm |
| build up | 29t | condition of compatibility | Loose layer and bedrock |
| Slow rise speed | 2m/min | Drilling way | Air reverse circulation drilling |
| Slow forward speed | 0.5～4m/min | With the impact | Medium and high wind pressure series |
