OEM Manufacturer Mud Mixing Pan - ZR250 Mud Desander – Sinovo Detail:

Product Description

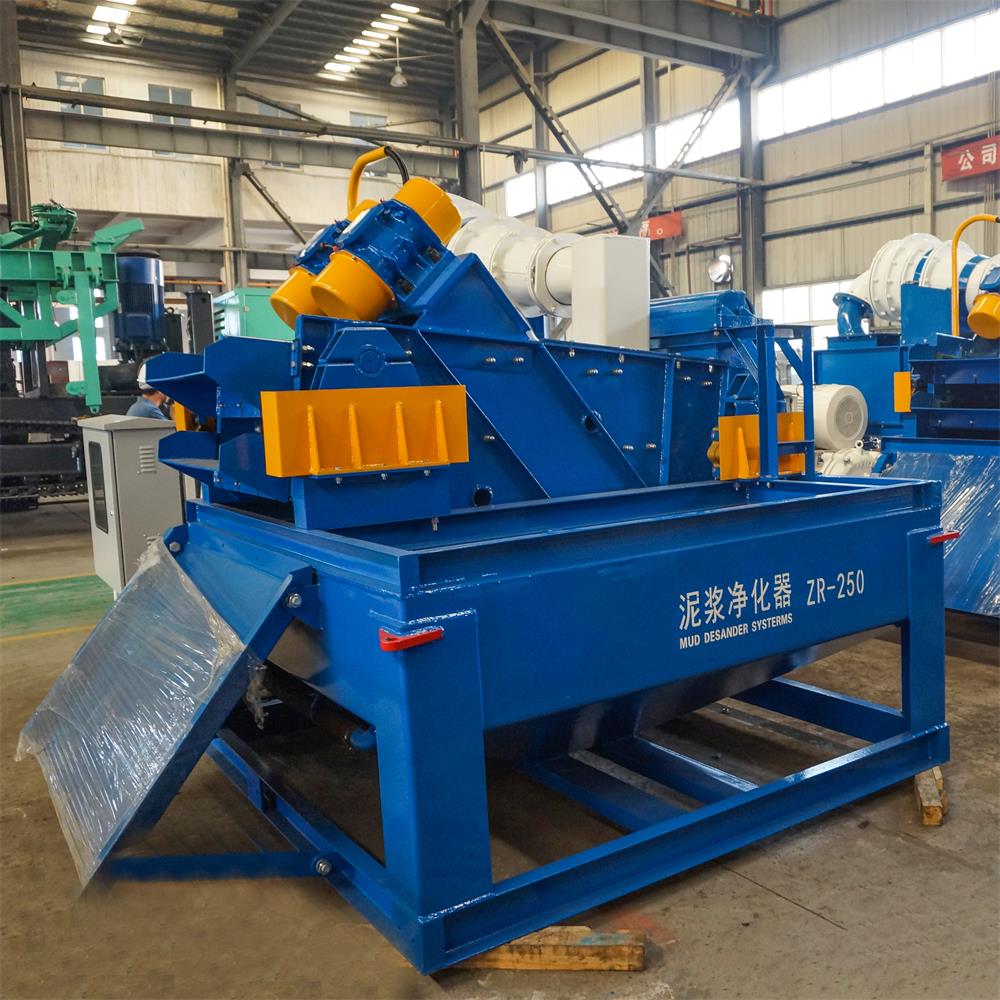

ZR250 mud desander is used to separate the mud, sand and gravel discharged by the drilling rig, part of the mud can be pumped back to the bottom of the hole for reuse.

Scope of application


ZR250 mud desander



ZR series mud desander is mainly applicable to the mud purification and recovery system for pile foundation engineering, slurry balance shield construction and slurry pipe jacking construction with slurry wall protection and circulating drilling technology.

This series of products can effectively reduce the construction cost and improve the construction efficiency. It is a necessary equipment for foundation construction.

Technical parameter

Name

ZR250
Maximum mud processing capacity /m/h

250
Desanding separation particle size /mm

d50=0.06
Slag screening capacity /t/h

25-80
Maximum water content of slag/%

<30
Maximum specific gravity of sludge /g/cm

<1.2
Maximum specific gravity that can handle sludge /g/cm

<1.4
Total installed power /Kw

58(55+1.5*2)
Equipment dimensions /KG

5300
Equipment dimensions /m

3.54*2.25*2.83
Vibration motor power/KW

3(1.5*2)
Vibration motor centrifugal force /N

30000*2
Mortar pump input power /KW

55
Mortar pump displacement /m/h

250
Cyclone separator (diameter)/mm

560
Main components/set

This series includes 1 mud tank, 1 combined filter (coarse filtration and fine filtration)

The maximum specific gravity of the sludge: the maximum specific gravity of the sludge when the maximum purification and sand removal efficiency is reached, the viscosity of the Markov funnel is below 40s(the viscosity of the Sauce funnel is below 30s), and the solid content is <30%

Main features

1. Fully purify the mud, effectively control the performance index of the mud, reduce the Sticking Accident and improve the hole forming quality.

2. The slurry is recycled to save slurry making materials. Greatly reduce the outward transportation cost and pulp making cost of waste pulp.

3. The effective separation of mud and sand by the equipment is conducive to improving the drilling efficiency.

4. Safe and convenient operation, simple maintenance, stable and reliable operation.
