2021 High quality Pre Bored Pile - TR460 Rotary Drilling Rig – Sinovo Detail:
Technical Parameters
|
Pile |
Parameter |
Unit |
|
Max. drilling diameter |
3000 |
mm |
|
Max. drilling depth |
110 |
m |
|
Rotary drive |
||
|
Max. output torque |
450 |
kN-m |
|
Rotary speed |
6~21 |
rpm |
|
Crowd system |
||
|
Max. crowd force |
440 |
kN |
|
Max. pulling force |
440 |
kN |
|
stroke of crowd system |
12000 |
mm |
|
Main winch |
||
|
Lifting force (the first layer) |
400 |
kN |
|
Wire-rope diameter |
40 |
mm |
|
Lifting speed |
55 |
m/min |
|
Auxiliary winch |
||
|
Lifting force (the first layer) |
120 |
kN |
|
Wire-rope diameter |
20 |
mm |
|
Mast inclination angle |
||
|
Left/right |
6 |
° |
|
Backward |
10 |
° |
|
Chassis |
||
|
Chassis model |
CAT374F |
|
|
Engine manufacturer |
CATERPILLAR |
|
|
Engine model |
C-15 |
|
|
Engine power |
367 |
kw |
|
Engine speed |
1800 |
rpm |
|
Chassis overall length |
6860 |
mm |
|
Track shoe width |
1000 |
mm |
|
Tractive force |
896 |
kN |
|
Overall machine |
||
|
Working width |
5500 |
mm |
|
Working height |
28627/30427 |
mm |
|
Transport length |
17250 |
mm |
|
Transport width |
3900 |
mm |
|
Transport height |
3500 |
mm |
|
Total weight (with kelly bar) |
138 |
t |
|
Total weight (without kelly bar) |
118 |
t |
Product Introduction
TR460 Rotary Drilling Rig is large pile machine. Currently, the large tonnage rotary drilling rig is widely used by the customers in the complex geology area. What’s more, the large and deep hole piles are required in the across sea and across river bridge. Thus, according to the above two reasons, we researched and developed TR460 rotary drilling rig which has the advantages of high stability, large and deep pile and easy for transportation.
Features
a. Triangle support structure reduces turning radius and increases the stability of rotary drilling rig.
b. Rear-mounted main winch uses double motors, double reducers and single layer drum design which avoids rope winding.
c. Crowd winch system is adopted, stroke is 9m. Both crowd force & stroke are larger than those of cylinder system, which is easy to embed casing. Optimized hydraulic and electrical control system improves system control accurancy and reaction speed.
d. Authorized utility model patent of depth measuring device improves the accuracy of depth measurement.
e. Unique design of one machine with double working conditions can meet the requirements of large piles and rock-entry.
Dimensional drawing of folding mast:
Specification for kelly bar:
|
Specification for standard kelly bar |
Specification for special kelly bar |
|
|
Friction kelly bar |
Interlock kelly bar |
Friction kelly bar |
|
580-6*20.3 |
580-4*20.3 |
580-4*22 |

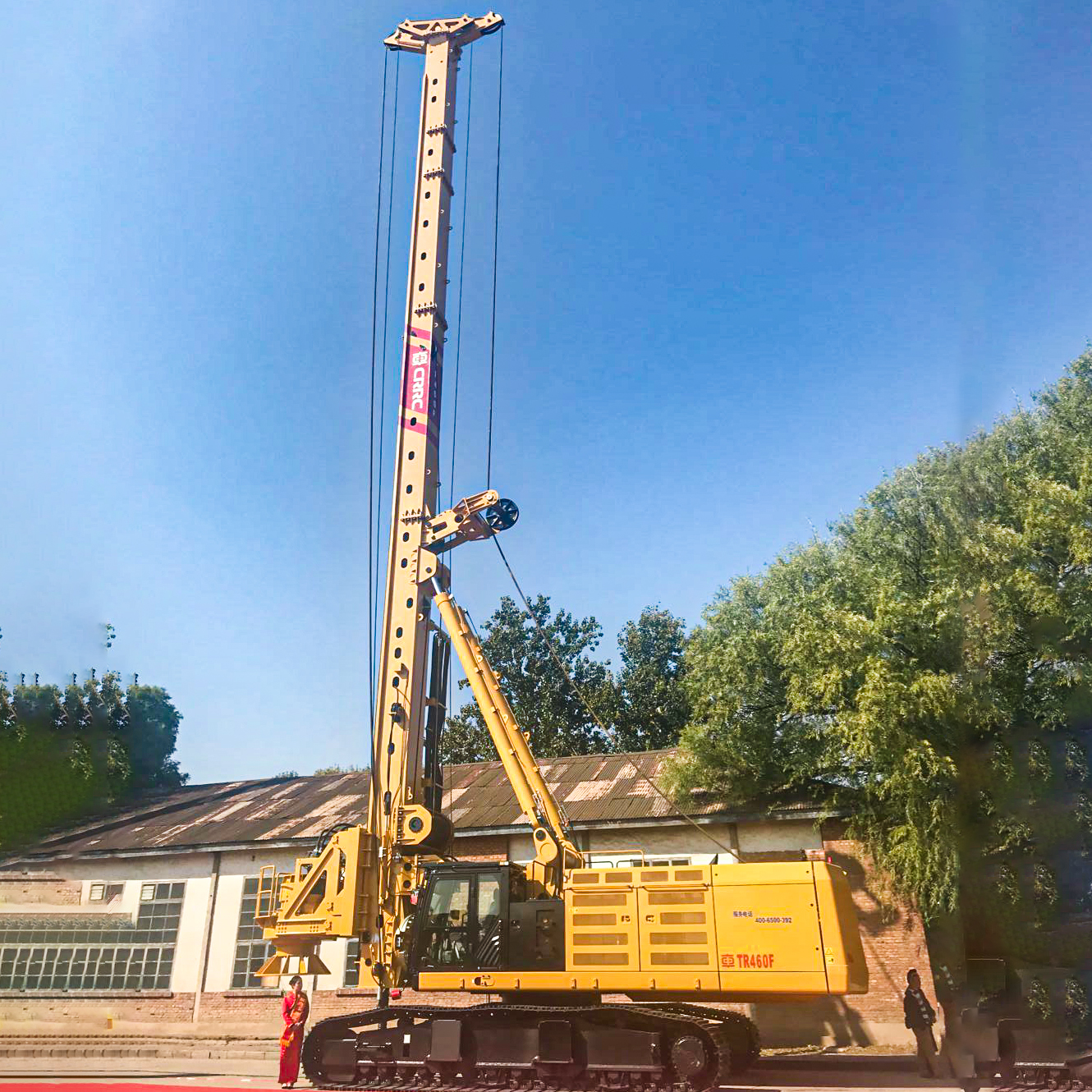

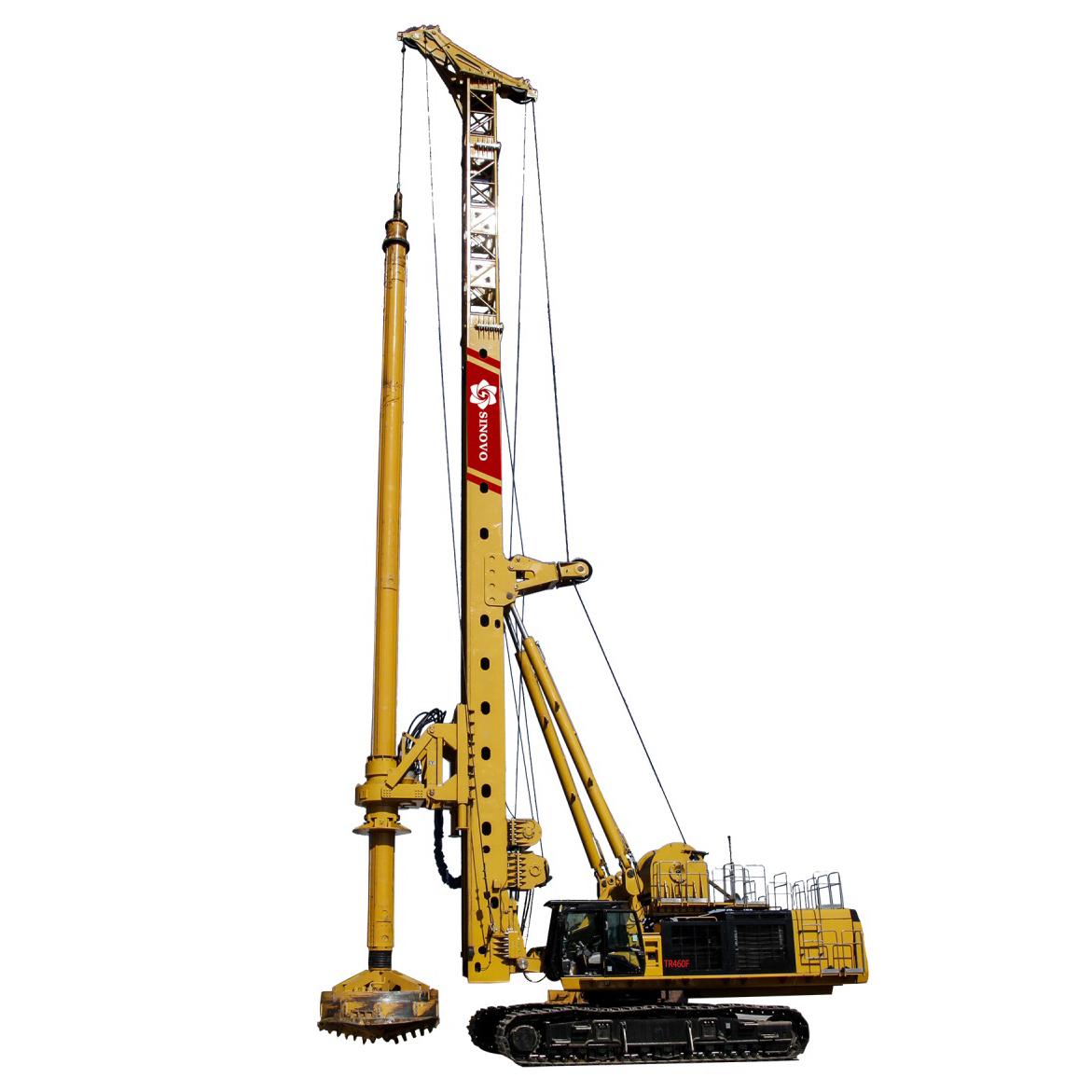

Photos of TR460 rotary drilling rig:
Q1: Are you a manufacturer, trading company or a third party?
A1: We are a manufacturer. Our factory is located in Hebei Province near the capital Beijing, 100km away from Tianjin port. We also have our own trading company.
Q2: Wonder if you accept small orders?
A2: Do not worry. Feel free to contact us. In order to get more orders and give our clients more convenience, we accept small orders.
Q3: Can you send products to my country?
A3: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q4: Can you do OEM for me?
A4: We accept all OEM orders, just contact us and give me your design. We will offer you a reasonable price and make samples for you ASAP.
Q5: What's your payment terms?
A5: By T/T, L/C AT SIGHT, 30% deposit in advance, balance 70% before shipment.
Q6: How can I place the order?
A6: First sign the PI, pay deposit, then we will arrange the production. After finished production you need to pay the balance. Finally we will ship the goods.
Q7: When can I get the quotation?
A7: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation, please call us or tell us in your mail, so that we could regard your inquiry priority.
Q8: Is your price competitive?
A8: Only good quality product we supply. Surely we will give you the best factory price based on superior product and service.
Product detail pictures:
Related Product Guide:
