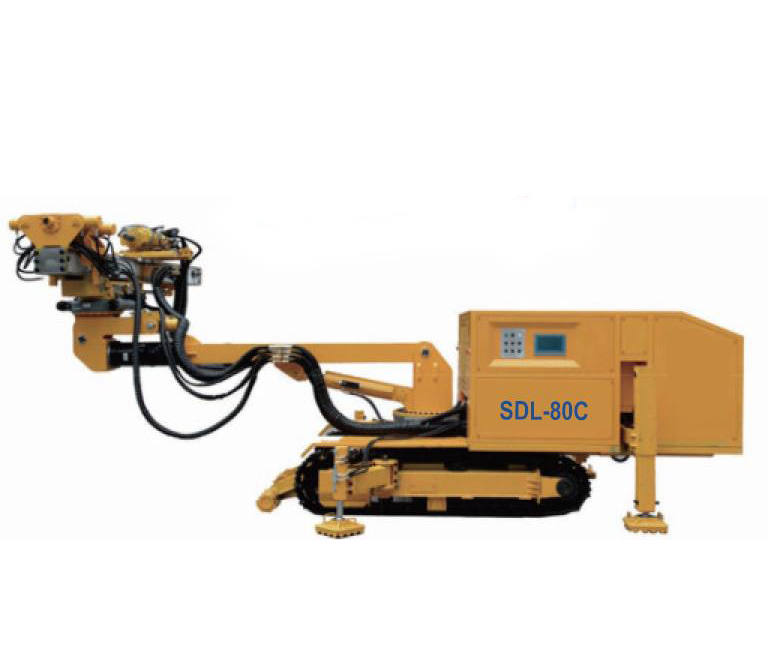

SDL-80ABC Series Drilling Rig

Short Description:

A

BC

SDL series drilling rig is top drive type multifunctional drilling rig which our company design and manufacture for complex formation according to market request.


Product Detail

Product Tags

SDL series drilling rig is top drive type multifunctional drilling rig which our company design and manufacture for complex formation according to market request.

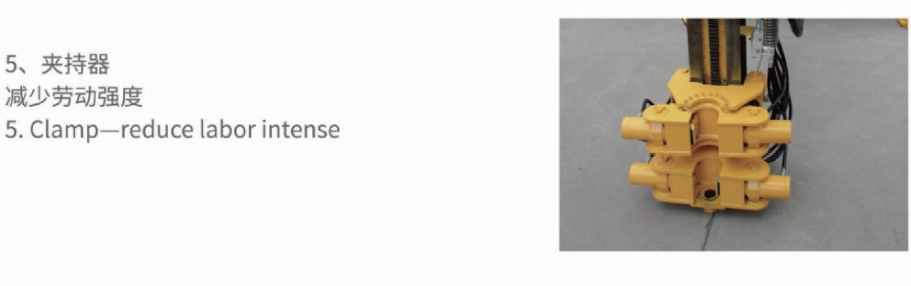

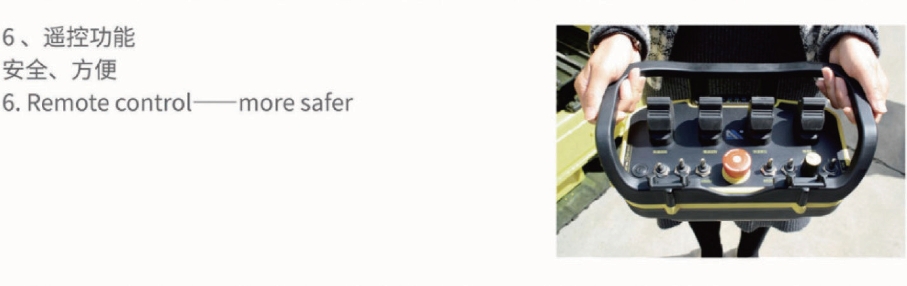

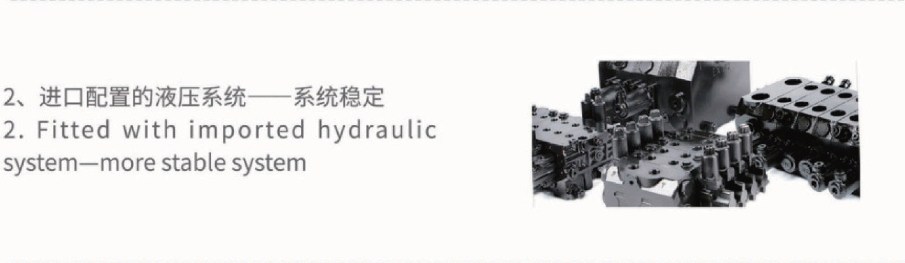

Main characters:

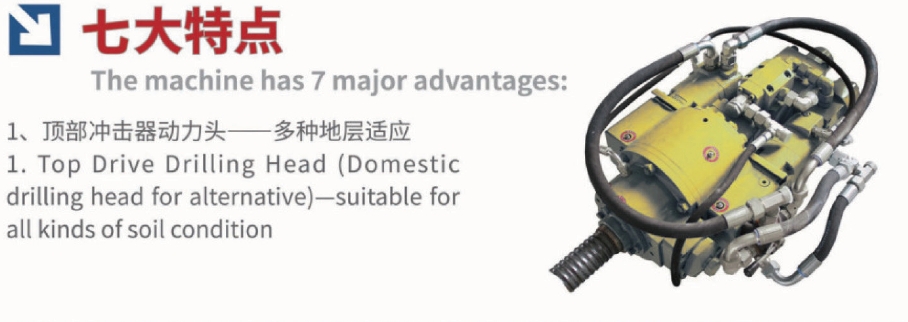

1. With large impact energy in the top drive drilling head, that can achieve impacting drilling without using DTH hammer and air compressor, has higher working efficiency and better result.

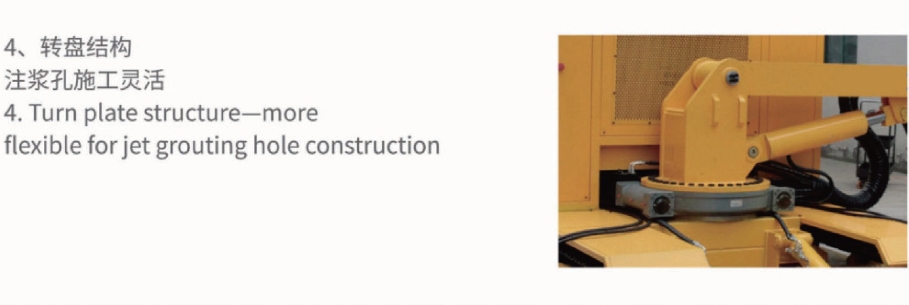

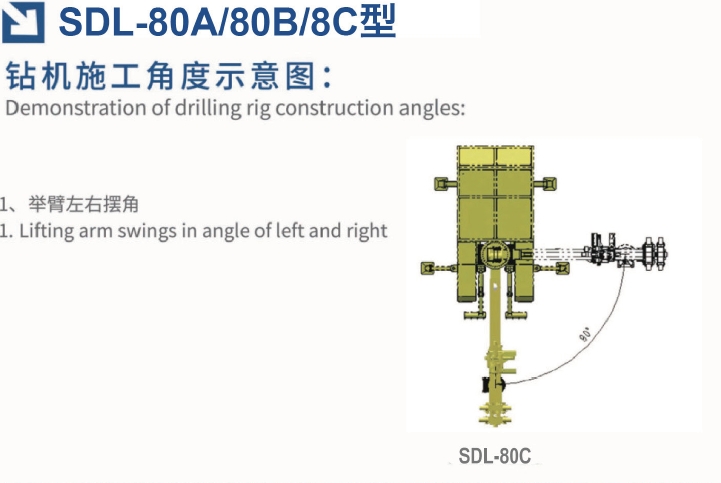

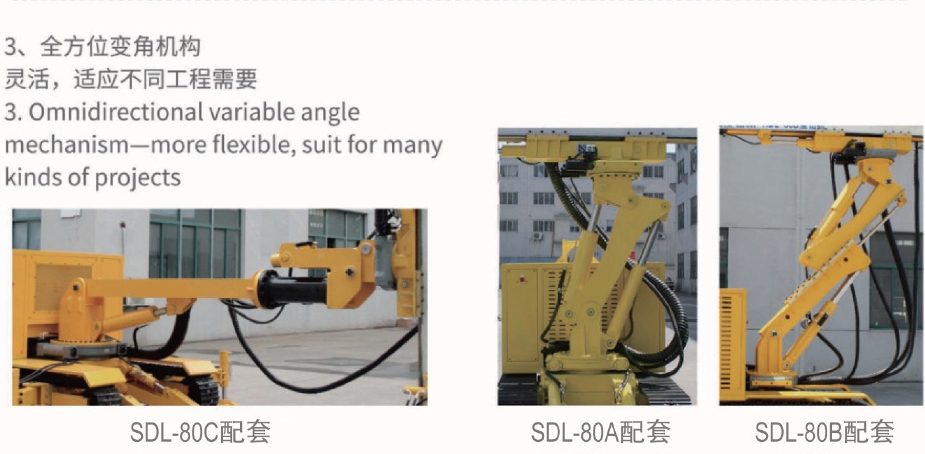

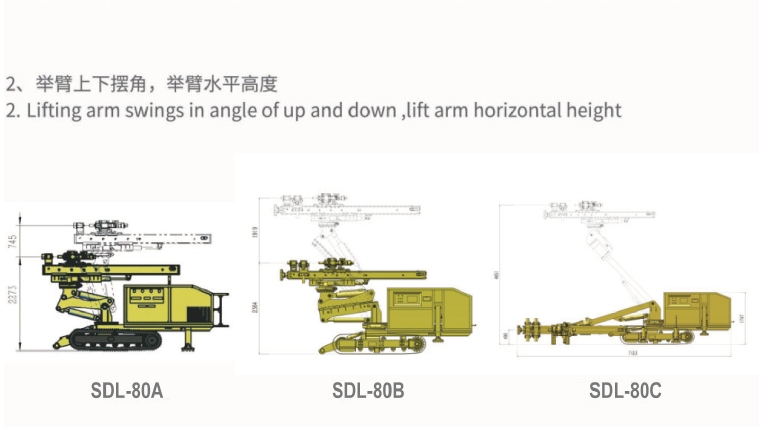

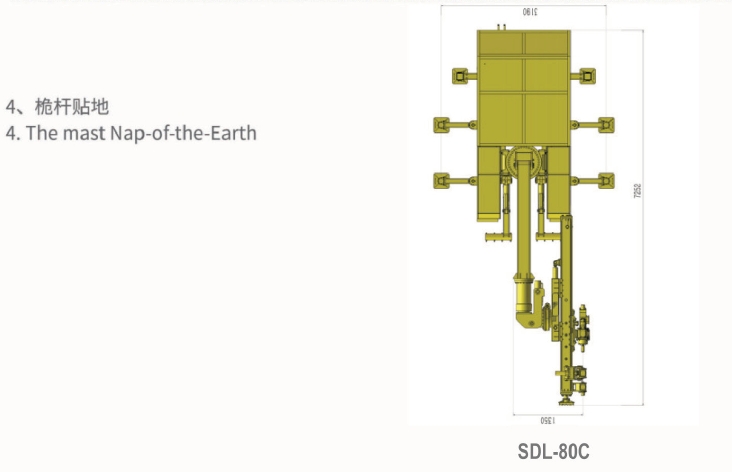

2. With omnidirectional, multi-angle adjustment, which can meet many kinds of drilling angle requirement, more convenient for adjustment.
3. It has smaller volume; you can use it in more places.
4. The impact energy transmits on drilling tools from inside to outside, which reduce drill sticking, hole collapsing, drill bit being buried or other incidents, and make the construction safer and with lower cost.
5. Suitable for various kinds of soft and hard soil condition, including sand layer, broken layer and other complicated layers.

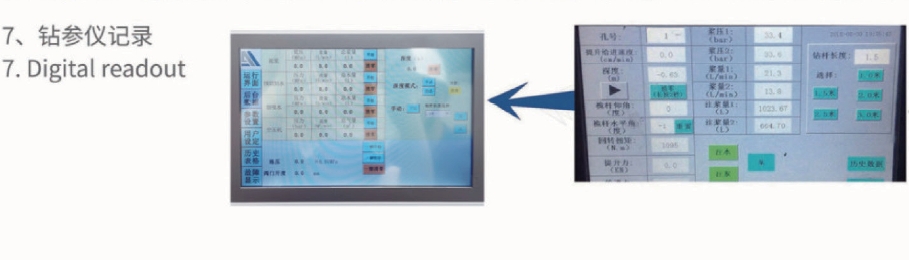

6. With high working efficiency. When fitted with relative drilling tools, it can do hole drilling and cement grouting in one time, reduce material consuming.
7. This machine is mainly applied in: caver control; slightly disturbance area grouting, tunnel anchor, tunnel advance bore hole inspection; advance grouting; building rectification; indoor grouting and other engineering.

Main Technique Specifications

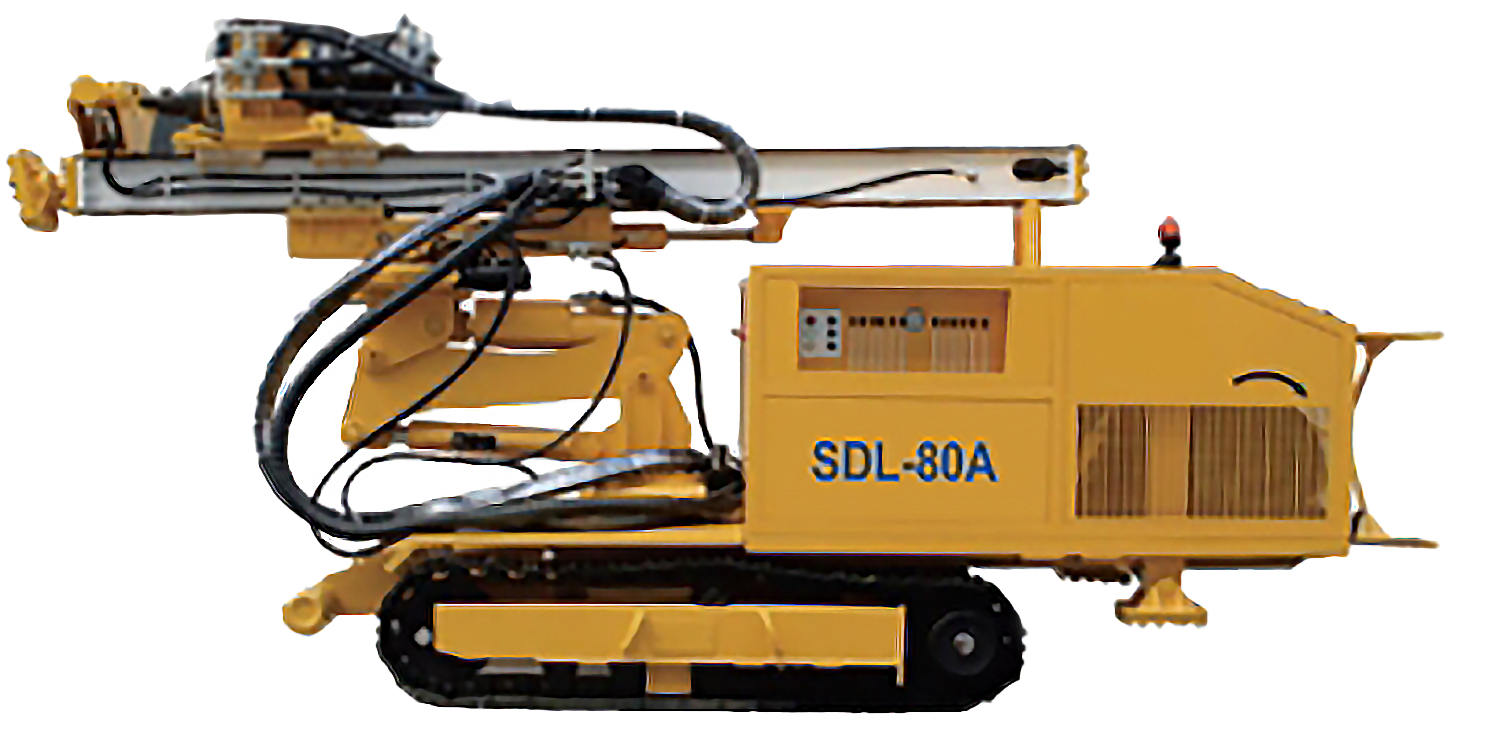

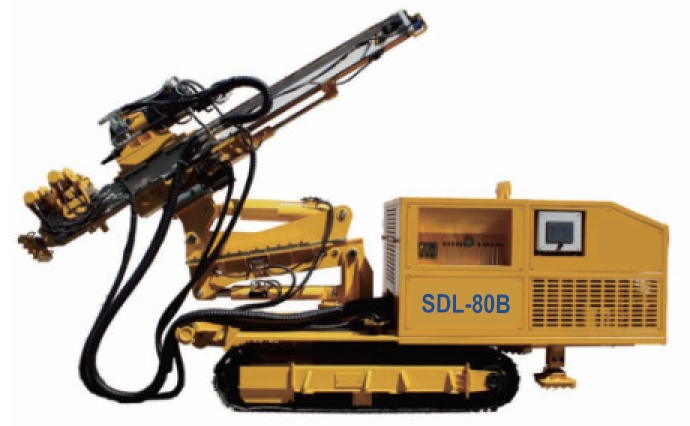

Specifications SDL-80A SDL-80B SDL-80C
Hole diameter(mm) Φ50~Φ108
Hole depth(m) 0-30
Hole angle(°) -15-105 -45-105
Rod diameter(mm) Φ50,Φ60,Φ73,Φ89
Gripper diameter(mm) Φ50-Φ89
Rated output torque(m/nin max) 7500 4400
Rated rotary speed(m/nin max) 144 120
Lifting speed of rotary head(m/min) 0~9,0-15
Feeding speed of rotary head(m/min) 0~18,0-30
Impact power of rotary head(N.m) / 320
lmpact frequency of rotary head(b/min) / 2500(max)
Rated lifting force(kN) 45
Rated feeding force(kN) 27
Feeding stroke(mm) 2300
Sliding stroke(mm) 900
Input power(Electromotor)(kw) 55
Transport Dimension(L*W*H)(mm) 4800*1500*2400 5000*1800*2700 7550*1800*2700

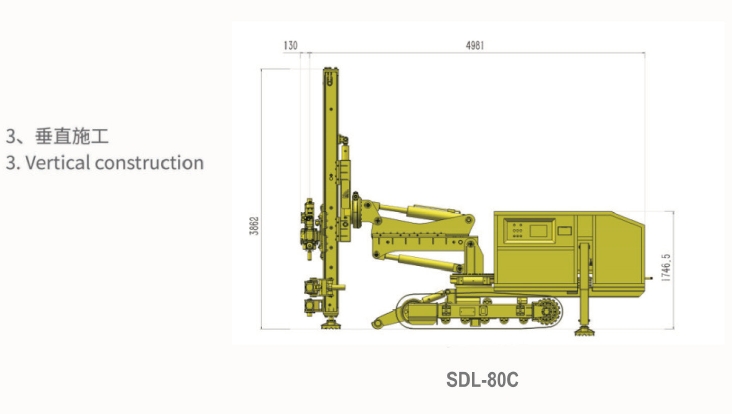

Vertical Working Dimension (L*W*H)(mm) 4650*1500*4200 5270*1700*4100 7600*1800*4200
Weight(kg) 7000 7200
Climbing angle(°) 20
Working pressure(Mpa) 20
Walking speed(m/h) 1000
Lifting height(mm) 745 1919 2165
Maximum construction height(mm) 3020 4285 4690
