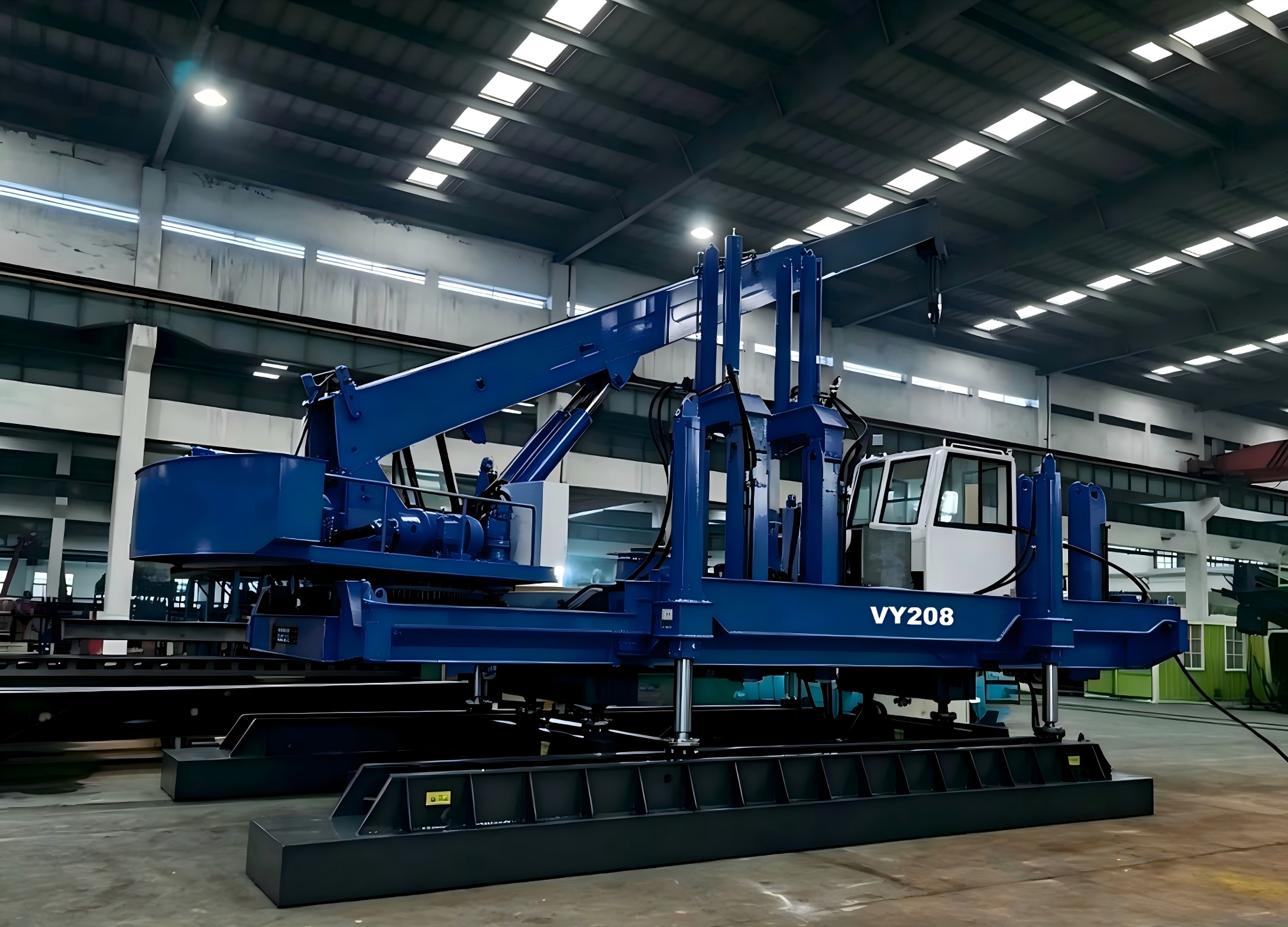

In densely built cities, the loudest machine on site is rarely welcome. The VY208 hydraulic static pile driver from Sinovo Heavy Industry takes a different approach — pressing piles into the ground with controlled hydraulic force rather than hammering them, cutting noise and vibration to levels that make urban piling workable.
Built around a 208-tonne pressing force
The VY208 is a substantial machine. Its total equipment weight reaches 208 t, of which 128 t is counterweight iron, while the machine itself weighs 80 t (±3%). The maximum piling force is 208 tf, driven by a hydraulic system rated at 25 (16) MPa. Piling speed reaches 11.89 m/min, with a stroke of 1.6 m per cycle.
Getting close to the work
Static drivers earn their place on sites where access is tight. The VY208 needs just 1000 mm for side piling and 1700 mm for corner piling — dimensions that allow it to work along retaining walls, between existing structures, and in corners that would stop a conventional rig.
Transport and setup are equally considered. Transport height is 3.6 m, working dimensions are 11.8 × 4.65 m, and the bridge system splits into a 10 × 0.8 m long bridge and a 3.5 × 2.5 m short bridge — practical sizes for standard low-bed transport between projects.
Where it fits
The VY208 suits urban commercial and residential foundations, metro and underground works, and industrial projects where vibration limits are written into the contract. It is equally at home on sites near hospitals, schools, heritage buildings, or operating factories, where driven piles would simply not be permitted. In soft ground conditions, the static pressing method also reduces soil disturbance compared with impact driving.
What users report
Contractors working with Sinovo static drivers consistently point to two things: noise and control. Because there is no impact hammer, piling can continue into evening hours in residential areas without exceeding noise limits. Operators also note that the hydraulic pressing action gives a clear read on pile behaviour — refusal, sudden resistance changes, and pile integrity issues show up immediately in the pressure gauge, allowing adjustments in real time rather than after the fact. The 12° rotary movement and 3 m longitudinal stroke are frequently mentioned as time-savers, reducing the number of separate machine repositioning steps per pile.
A practical answer to modern piling constraints
As cities tighten noise and vibration regulations, equipment has to adapt. The VY208 does so without sacrificing force or reach — 208 tf of pressing power in a package that fits into the spaces where foundations actually need to go. For contractors facing constrained sites and strict environmental limits, it is a machine built around the conditions of real urban work.
